Product Description:
ZXS new series of pneumatic membrane angular single-seat control valves adopt a top guide structure and are equipped with a multi-spring actuator, which has the advantages of compact structure, light weight, sensitive action, large valve capacity, S-streamlined fluid channel, small pressure drop loss, large valve capacity, accurate flow characteristics, and easy disassembly and assembly. It is widely used in precise control of gas, liquid and other media, and process parameters such as pressure, flow, temperature, and liquid level are kept at a given value. It is especially suitable for the adjustment of high viscosity of small valves with small pressure differences, suspended solids and particulate matter fluids, which can avoid coking and blockage, and facilitate self-cleaning and cleaning.

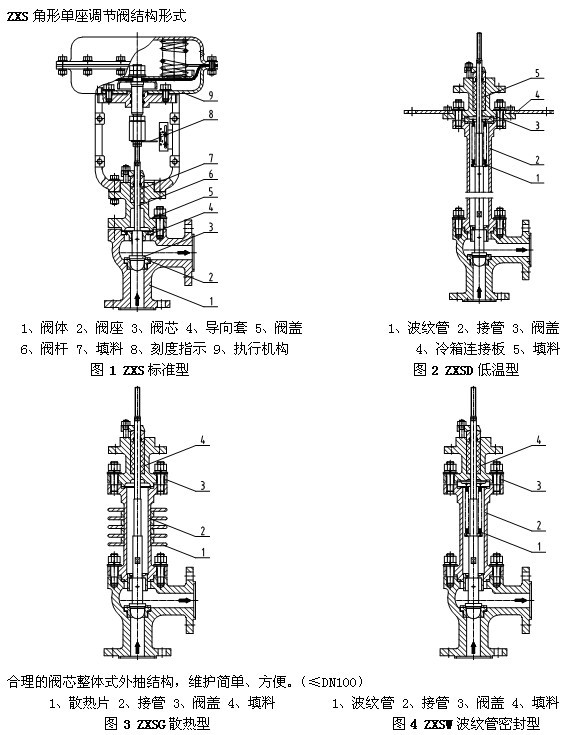

This series of products has a variety of varieties such as standard type, adjustable cut-off type, bellows sealing type, jacket insulation type, etc. The nominal pressure level of the product is PN10, 16, 40, 64; the valve body diameter range DN20~200. The applicable fluid temperature ranges from -200°C~+560°C, and there are various grades within its range. The leakage standard is class IV or VI. The flow characteristics are linear or equal percentage. A variety of varieties and specifications are available.
Product Features:
Top guide, bottom in and side out, simple flow path, small resistance, large valve capacity.

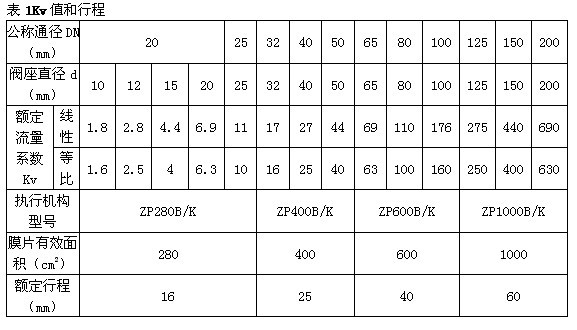

The adjustable range is large, the intrinsic adjustable ratio is 50, and the flow characteristics are linear and equal percentages.
The actuator adopts a multi-spring structure, which reduces the height and weight by 30%.
The ZXNV bellows sealed control valve forms a complete seal on the moving valve stem to block fluid leakage.
ZXNJ control valve with insulation jacket is used when fluid is easy to crystallize and solidify after cooling, causing blockage.
Part Materials:
Valve body, valve cover: HT200, ZG230-450, ZG1Cr18Ni9Ti
Valve spool, seat: 1Cr18Ni9Ti, Stella alloy overlay
Soft seal spool: Reinforced Teflon
Filler: Teflon, flexible graphite
Bellows: 1Cr18Ni9Ti
Fillers: rubber asbestos board, 1Cr18Ni9Ti, asbestos winding gasket
Membrane cover: A3
Corrugated diaphragm: Nitrile rubber clip reinforced polyester fabric
Spring: 60Si2Mn
Stem, actuator: 2Cr13, 1Cr18Ni9Ti
Bushing: 2Cr13
Implementing Agency:
Type: Multi-spring type film actuator
ZP280B/K，ZP400B/K，ZP600B/K，ZP1000B/K
Valve function: positive action, reaction
Diaphragm material: Nitrile rubber clip reinforced polyester fabric
Spring range: 20~100KPa, 40~200KPa 80~240KPa
Air supply pressure: 0.14~0.4MPa
Signal Interface: Female M16×1.5 (M10×1)
Ambient temperature: -30°C~+70°C
Accessories (configured on request)
Positioner, air filtration pressure reducing valve, handwheel mechanism, limit switch, solenoid valve, valve position transmitter, relay, position holding valve, etc

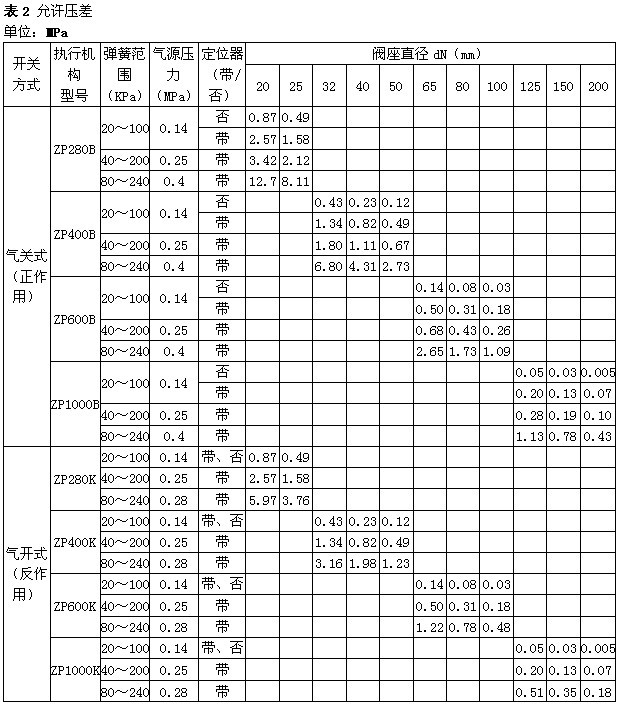

Note 1) For ZXSW type single-seat bellows sealed control valve, the large allowable pressure difference is 1.0MPa, if the value in the table is less than 1.0MPa, it remains unchanged, and if the value is greater than 1.0MPa, the value is 1.0MPa.

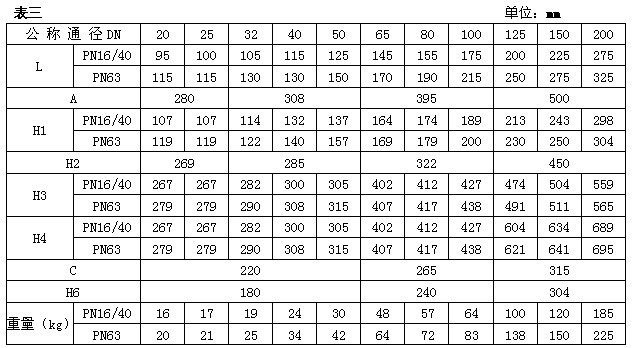

Note 1) The weight in the table is standard without accessories, and side-mounted handwheels can also be installed.
2) The valve body flange and flange end pitch can be manufactured according to the standards specified by the user, such as: ANSI, JIS, DIN and other standards.
